Corexy Vs. Cartesian

To build 3D structures and objects, various 3D printing methods have been developed. A few of them are still in use today, while others have faded into obscurity.

This guide focuses on the various 3D printing technologies, or, in layman's terms, 3D printer types. Following is a selection of the most frequent 3D printing technologies used today:

The seven various kinds of 3D printers

1. Combined deposition modeling (FDM)
2. Stereolithography (SLA)
3. Processing of Digital Light (DLP)
4. SLS (Selective Laser Sintering) (SLS)
5. Laser melting with selectivity (SLM)
6. Production of laminated objects (LOM)
7. Melting of Digital Beams (EBM)

Cartesian, Delta, Corexy, Polar, H- bot, Scara, and Belt are the seven types of FDM printers. We will look at two of the most common printing systems: corexy and Cartesian. So, if you're looking to buy a low-cost 3D printer but aren't sure which of the two printing systems is best for you, keep reading this Corexy vs. Cartesian comparison.

What is a "CoreXY" system?

The CoreXY motion system design

The term refers to a particular design for the X and Y motion systems on not only 3D printers but also other types of CNC machines.

The motion system is a critical component of 3D printers, particularly filament-based cartesian designs where the hot end must be moved rapidly in three dimensions. While the Z-axis is a separate matter, the X and Y axis motion systems can be more complex, and there are multiple methods.

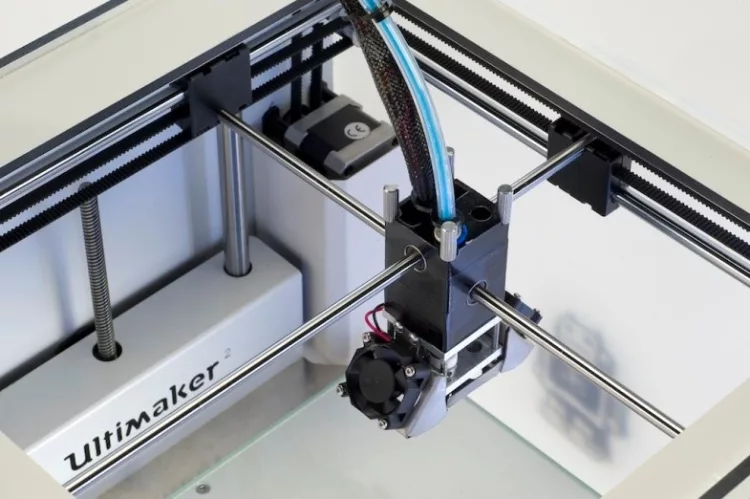

Here's a design used by Ultimaker on their machines. Other manufacturers use a variety of different schemes.

But one design that's becoming more popular is the CoreXY system, as described in the excellent CoreXY site made by Ilan Moyer. Here's how it works:

As you can see, the system requires only two stepper motors and provides a means of moving both axes independently or simultaneously. The primary benefit of the design is that the motors remain in a static position.

This is different from other designs in which one of the motors must be moved along the axis. The weight of the motor makes it more difficult to change directions as inertia prevails.

As a result, a CoreXY-based system could theoretically operate faster than other designs.

The CoreXY design is only a concept, not a working system. It is up to machine designers to create detailed plans for implementing their CoreXY system. Here's an example of a typical waterjet-cut aluminum plate implementation:

However, one design gaining popularity is the CoreXY system, which is described in detail on Ilan Moyer's excellent CoreXY website. This is how it works:

Advantages and disadvantages of CoreXY 3D printers

CoreXY 3D printers, like any novel idea, are an exercise in compromise. While it has advantages over a standard Cartesian 3D printer, it is far from a perfect replacement.

PROS:

Lighter and faster print head

Corexy printers are lighter since their stepper motors are located at their corners. This means that faster print head movement is possible without the risk of overshooting the target destination due to residual momentum. This allows you to reproduce great details in your model without slowing down the print head movement to a crawl.

A CoreXY printer's design also allows for simultaneous X and Y movement of the print head. This speed advantage is one of the most appealing aspects of the CoreXY 3D printer concept. If you own a 3D printing company, this increase in throughput could easily justify the purchase of a CoreXY printer.

High stability

Stepper motors are kept cool by being placed away from heat. Stepper motors and heat are not a good combination, but they are unavoidable when assembling the typical Cartesian 3D printer. The stepper motors in CoreXY printers are located a significant distance from any heating element.

This should make printing at higher temperatures safer without causing damage to the stepper motors. This also simplifies the construction of a heated enclosure around the build plate without jeopardizing heat damage to other mechanical parts.

Smaller footprint

A complex frame and several rigid rails are not required because the stepper motors in a CoreXY 3D printer control movement in both the X and Y directions. This allows CoreXY printers to have a smaller footprint in terms of both height and base width. The size reduction isn't huge, but it can be significant if you have limited space.

One of the most significant advantages of CoreXY printers is their ability to print faster without leaving behind artifacts. This is because there are no moving parts in the considerable mass.

Other printer designs typically include a moving gantry connected to the stepper motors or the print bed. During a print, this is thrown back and forth, causing excess vibration and resulting in artifacts.

The CoreXY design, on the other hand, has all of the stepper motors fixed, and the print bed moves vertically. This means that the tool head is the only part of the printer that is moving at a significant speed with significant mass, and thus there is much less vibration.

This means that a CoreXY printer can print faster while avoiding print quality issues like ghosting and ringing.

Another benefit of having a vertically moving bed is that CoreXY printers can offer the same build volume while having smaller overall dimensions. Specific designs, such as the H-bot, share this feature.

i3-style printers should have a base roughly twice the build volume to see all of the build areas and allow the bed to move freely back and forth. This usually results in an extended printer that is difficult to place on some workbenches or enclose properly.

The tool head on a CoreXY printer moves horizontally in both the X and Y directions, allowing it to access the entire build plate without taking up extra space, making it much easier to enclose and place on shelves.

CONS:

Difficult Assembly

A 3D printer can easily be assembled from a kit of parts. The only issue with a CoreXY 3D printer is that its frame is much less forgiving in construction.

The alignment of a CoreXY printer's frame is critical to ensuring that its belts are correctly tensioned. This has a direct impact on the accuracy of the printer head's movement. In essence, a CoreXY printer requires nothing less than perfection.

Needs more Regular Maintenance:

Speaking of belt tension, this is yet another aspect of CoreXY 3D printing that must be flawless. When belts and pulleys wear out, they can become loose and misaligned. This is a problem because belts can become tense in the middle of a print. With a CoreXY 3D printer, this could quickly derail a project.

This means that CoreXY printers are more difficult to maintain. Check the condition of motors, pulleys, belts, and the lubrication of these various parts. Moving parts increase the chances of something going wrong.

Most CoreXY 3D printers in use today are found in professional settings due to their more complex operations and maintenance requirements. However, the design's advantages in terms of quality and productivity are undeniable.

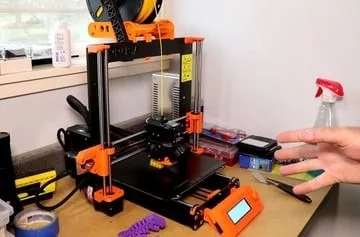

What is the cartesian printer?

Cartesian system

How Do They Work?

The Cartesian 3D printer position its print head and prints linearly along the X, Y, and Z axes. A Z-axis gantry typically moves the print head, but other motions are possible depending on the printer.

What Makes Them Different?

Cartesian 3D printers are distinct from printers that use different operational coordinate systems, such as polar. Cartesian printers map out where to print using Cartesian coordinates, whereas polar printers use a polar coordinate grid.

Informally, the term "Cartesian" refers to Cartesian printers that are not delta or SCARA printers. Consider square or boxy frames with linear rails.

PROS:

Easy To Use

Cartesian 3D printers are not only inexpensive but also simple to set up. While most Cartesian 3D printers arrive fully assembled, some may require as little as 5 minutes to complete.

Precise Printing

Cartesian 3D printers ensure precise printing despite being inexpensive and simple to use. They have a mechanism that enables them to create models with a smooth texture and perfect details.

Cartesian 3D printers have a large community ready to assist you if you need assistance. Parts are available.

Because of the popularity of Cartesian 3D printers, spare parts are widely available.

Cartesian System Limitations:

CONS:

Slower Print Speed

Because Cartesian 3D printers have a heavy print head, moving and drawing the print lines takes time. This is because it cannot change direction quickly. Otherwise, it would negatively impact print quality.

More Weight

Aside from the slow speed, Cartesian 3D printers have a large and heavy frame, which requires more space.

EXAMPLES:

MakerBot Replicator Prusa i3 MK3S Creality Ender 3

Cartesian 3D printers are popular among both beginners and professionals because they are relatively inexpensive.

The primary distinctions between CoreXY and Cartesian 3D printers are as follows:

The primary differences between CoreXY and Cartesian 3D printers are as follows:

• Corexy 3D printers typically print objects quickly, whereas Cartesian 3D printers are slower.
• Corexy 3D printers use belts to print, whereas Cartesian 3D printers use the X, Y, and Z axes.
• Corexy 3D printers move at 0 or 90 degrees, while Corexy printers move at 45 degrees.

Cartesian 3D printers are typically easier to set up than Corexy 3D printers. Cartesian 3D printers are more accessible to grasp than Corexy 3D printers. A Cartesian 3D printer will likely be easier to set up for home users who don't use their printer often. Due to their prevalence, Cartesian 3D printers also enjoy a lot of community support.

While Corexy 3D printers are not notoriously tricky to use, getting accurate prints takes a bit more time. This is due primarily to the belt system and assembly. It can be challenging for first-time CoreXY 3D printer users to square the frame when assembling a 3D printer.

Pricing Comparison of CoreXY vs. Cartesian 3D Printers

Is there a price difference between the best Corexy 3D printers and the best Cartesian 3D printers before we show you the best Corexy 3D printers?

• In general, Cartesian 3D printers are less expensive, but this varies depending on the model.

It is the most common type of 3D printer, so it is relatively cheap compared to other models. Carexy 3D printers are reasonably priced, and most models are not entirely out of reach for home users.
